SB Micro Sampling Port
The Alfa Laval SB Micro Sampling Port enables representative hygienic and microbiological samples to be taken under sterile conditions in small volumes from tanks and pipework. To help ensure product safety, the sampling port features a straightforward hygienic design with minimal components to make collecting samples mid-stream easy, convenient and accurate.
Enables small volume hygienic and microbiological samples to be taken from tanks and pipework
- Safe, simple, aseptic sampling
- Small sample size
- Minimum impact to product
- Superior hygiene
- Versatile mounting
The SB Micro Sampling Port is specially designed for use within the brewery, food, dairy, beverage and many other industries.
Close at Hand catalogue
The hygienic equipment product catalogue "Close at hand" includes product leaflets, links to animations, brochures and lists for ordering purposes.
CAD portal
The Alfa Laval CAD portal is an essential platform for downloading detailed product information, 2D drawings and 3D product models.
Aseptic sampling for microbiological control
To help ensure food and beverage safety, the sampling port features a straightforward hygienic design with minimal components makes collecting samplings mid-stream easy, convenient and accurate.
Versatile mounting
Direct mounting on the tank wall, pipe wall, or extruded pipe ends in either a horizontal position or vertically with the closing cap facing downwards makes the valve versatile and suitable for a broad range of applications and provides the flexibility needed to meet your sampling requirements
Easy to clean
Hygienic design ensures optimum hygiene for representative sampling. When the port is located on the tank wall or pipe wall, the plug end that is flush with the wall is automatically cleaned during the routine Cleaning-in-Place (CIP) cycle. To minimize the risk of contamination, it is easy to sterilize the rest of the plug with alcohol before sampling.
Product benefits
- Simple, hygienic design
- Superior hygiene
- Compact size
Usluge
Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.
Learn more about our service offer Troubleshooting
Serial number search Certification
Please contact us with any queries or questions.

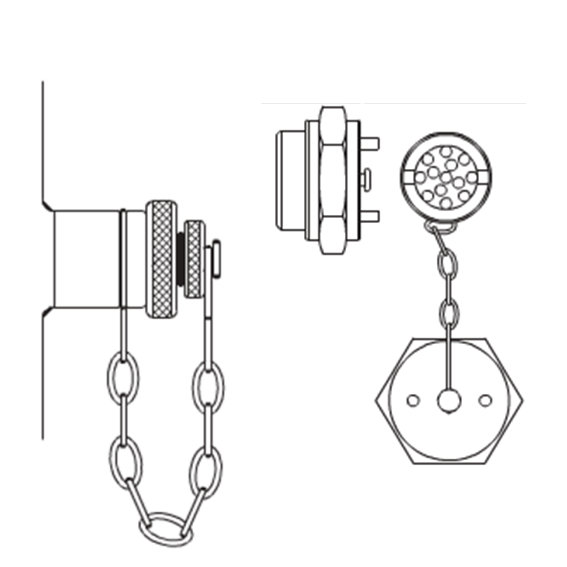

How it works
Construction

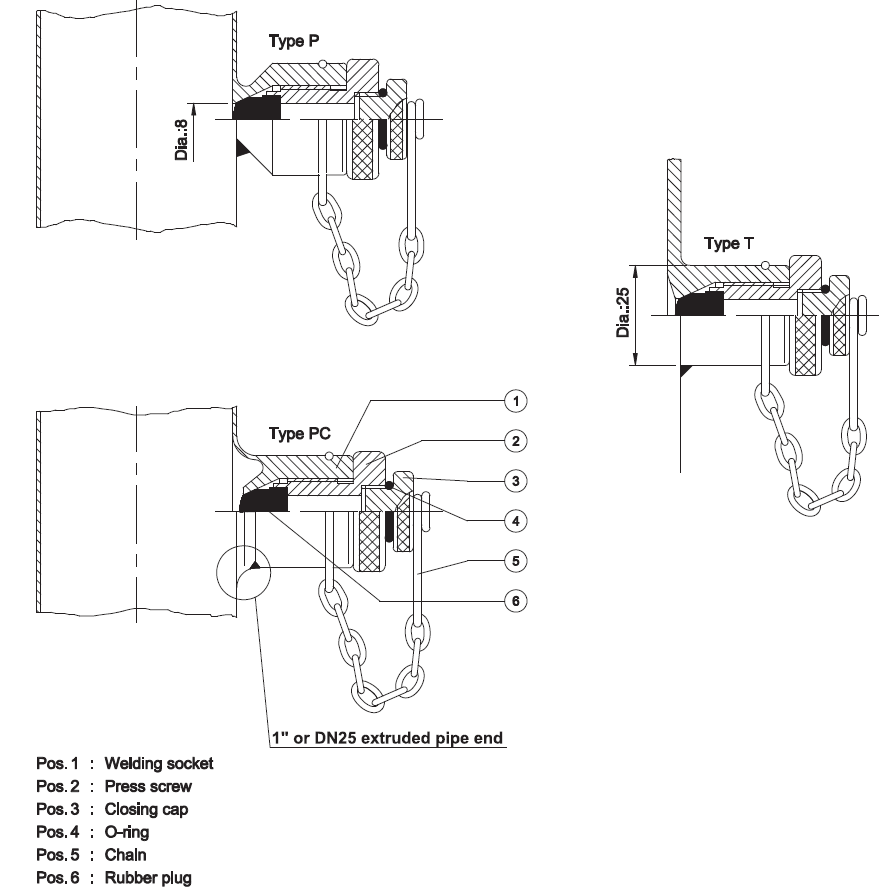

The sampling port consists of a housing made as a socket for direct welding into the tank wall or pipework, a rubber plug which is positioned by a press screw, an o-ring, chain and a closing cap. These different types of sockets are mounted:
- Socket, Type T, is welded into a 25-mm diameter hole in a tank wall
- Socket, Type P, is welded onto a pipe wall and, thereafter, an 8-mm hole is drilled
- Socket, Type PC, is available for welding onto extruded pipe ends equal to 1” as well as DN25
Operating principle

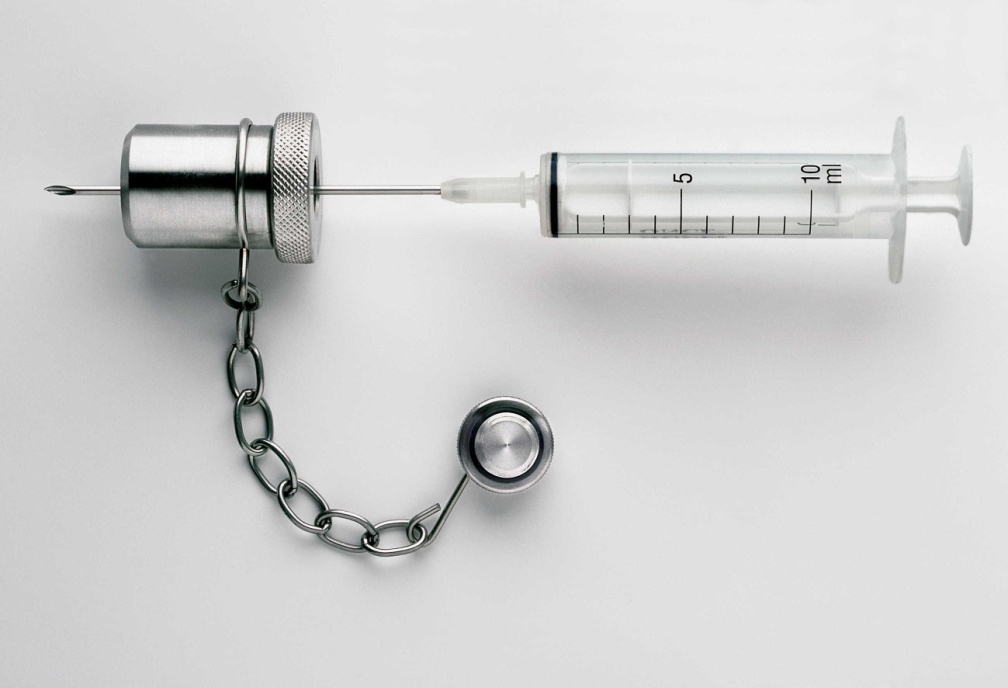

To take a sampling, simply unscrew the closing cap and insert a one-mm hypodermic needle through the rubber plug.
